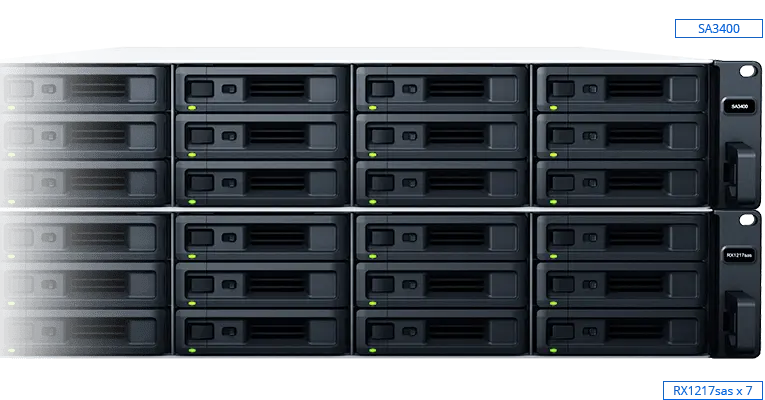

Synology SA3400 - Intel Xeon D-1541, 16GB RAM, 12 drive bays - SA3400
All-in-1 RAID NAS server in a high-performance configuration for 12x SAS/SATA HDDs (with RX1217sas supporting up to 96 disks, with RX2417sas supporting up to 180 disks). Throughput of up to 5520MB/s. Support for SSD cache, Rack 2U design, Hot-Swap disks with the ability for online capacity upgrade and RAID migration.
| Product code | 244.163533 |
|---|---|
| Part number | SA3400 |
| EAN | 4711174723430 |
| Manufacturer | Synology |
| Availability | Not in stock |
| Warranty | 60 months |
| Weight | 14.5 kg |
| The price includes all legal fees | |
Detailed information
Highly scalable storage with uncompromising performance
Equipped with an 8-core CPU and 16GB ECC RDIMM memory, SA3400 delivers sequential throughput at over 5,520 MB/s and 304,277 random IOPS1. Built-in 10GbE Ethernet, PCIe expansions, and the support for both SAS and SATA drives provide resilient configurability with fast data transmission, fulfilling modern enterprises' needs for excellent performance and massive storage scalability simultaneously.
-
CPU
Intel® Xeon® D-1541 8-core 2.1 GHz
-
Memory
16GB DDR4 ECC RDIMM, up to 128GB
-
Scalability
Up to 180/96 SAS/SATA drives
Small-to-hyperscale flexibility
Scalable up to 180/96 drives delivering more than 1.5 petabytes raw capacity, SA3400 can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.
Ultimate Backup Solution
SA3400 integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
Active Backup for Business
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Drive Package
Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
-
- Processor
CPU Intel Xeon D-1541 Socket FCBGA1667 TDP 45 W - System memory
Memory maximum Capacity 128 GB Memory Slots 4 Memory Type DDR4 RDIMM Error Detection (ECC) Yes DDR4 ECC RDIMM 16 GB (16 GB x 1) - Storage
Drive Bays 12 Compatible Drive Type 3.5" SAS HDD
2.5" SAS HDD
2.5" SAS SSD
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD- Input/output
Network 4x RJ-45 1GbE LAN Port
2x RJ-45 10GbE LANUSB 2 x USB 3.2 Gen 1
-
- Expansion slots
PCIe 2 x Gen3 x8 slots (x8 link) - Dimensions
Form Factor 2U Height 88 mm Width 482 mm Depth 724 mm Weight 14.5 kg - Power supply
Power 500 W QTY 1
Parameters
| Size in U | 2 |
|---|---|
| Number of disks | 12 |
| CPU manufacturer | Intel |
| Socket | 1667 |
| Core count | 8 |
| Memory generation | DDR4 |
| Max DIMM slots for memory | 4 |
| Total amount of PCIe | 2 |
| Number of power supplies | 1 |
