Components Cases 4U Supermicro CSE-846XE2C-R1K23B

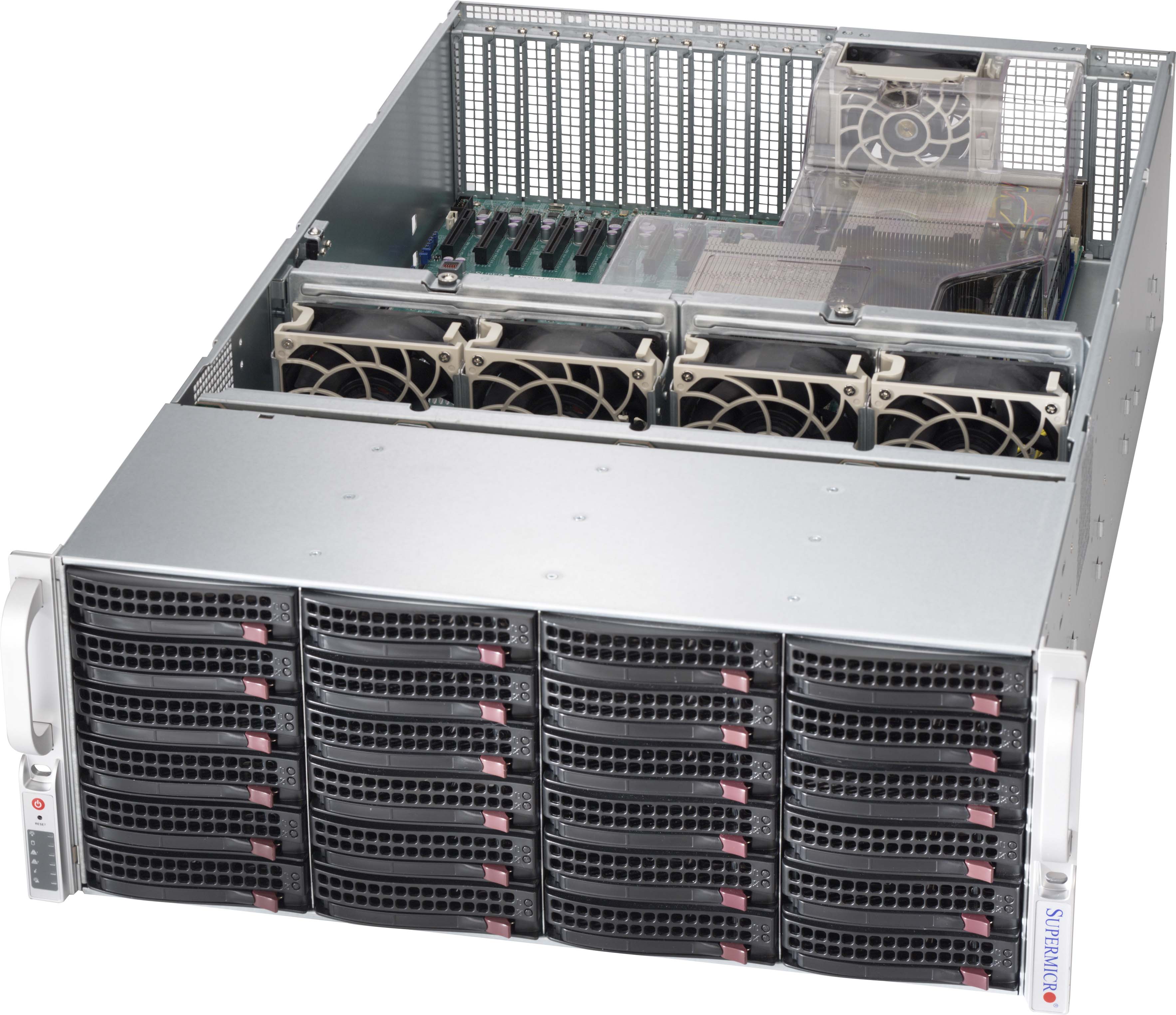

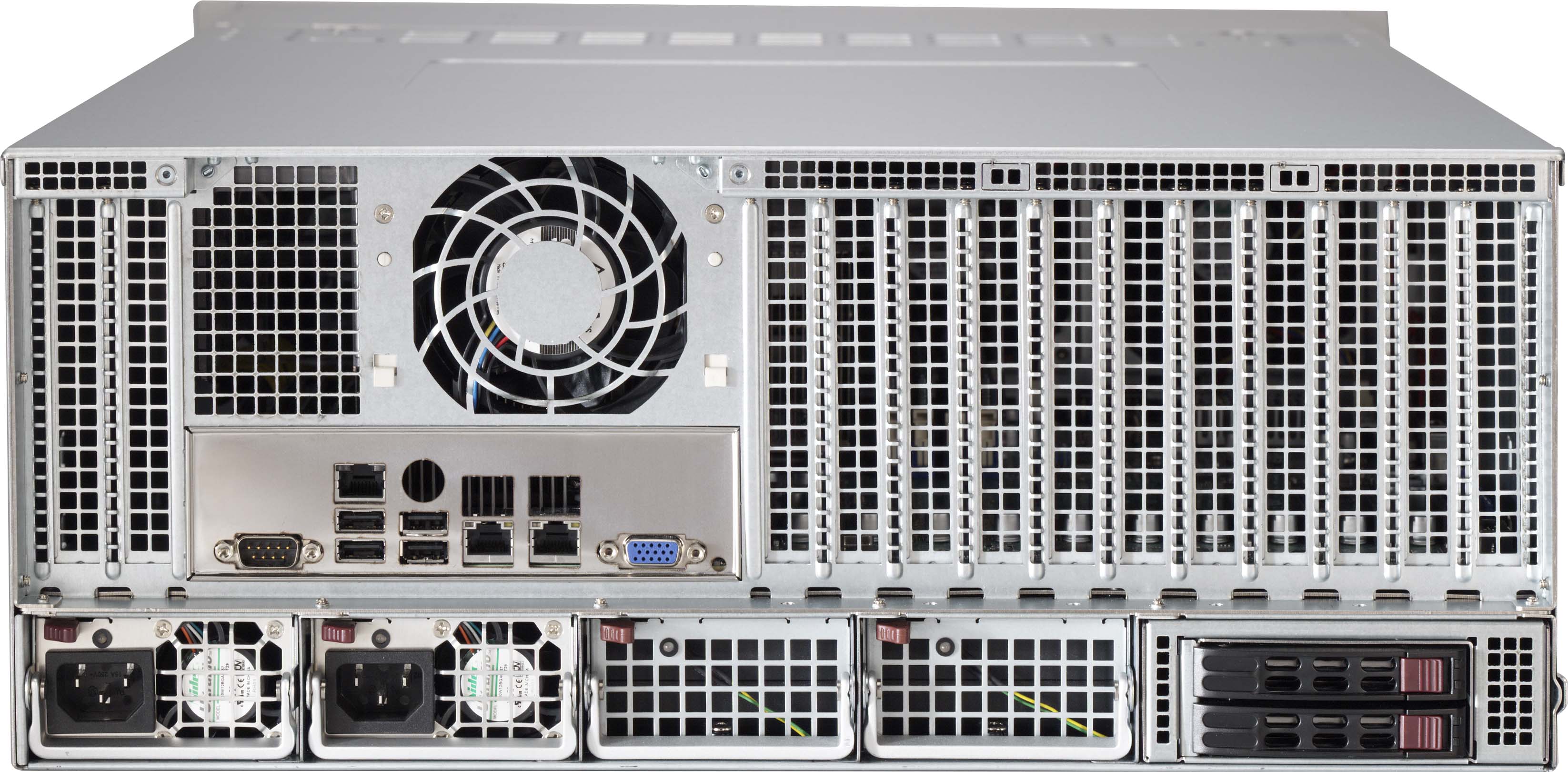

Supermicro CSE-846XE2C-R1K23B

Supermicro CSE-846XE2C-R1K23B

1. 100% cooling redundancy, 24x 3.5" Hot-swap SAS3 Drive Bays 2. Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud 3. Dual SAS3 (12Gbps) expander backplane 4. Mini SAS HD (SFF 8643) connectivity; 5. Support two 1000W BBP 6. Support up to 13 FH FL expansion slots 7. High Availability PS, Storage Capacity, and numerous I/O slots

We also offer six months of free collocation in our TIER III data center.

Components are not the end — ask us for a custom server configuration. We will design the server, assemble it, expertly set it up, and provide extended or NBD warranty.

Product code 202.351756
Part number CSE-846XE2C-R1K23B
Manufacturer Supermicro
Availability
In stock 0 pc
Stock allocation and delivery options
Transport company across Europe
Thursday 28. 11. at the latest Wednesday 4. 12.
Supplier availability In stock 2 pc
Warranty 24 months
Weight 10.17 kg
The price includes all legal fees
€ 2 351,45 ex VAT
€ 2 351,45 w/ VAT
pc
Add to compare list

Detailed information




 Chassis Manual

Key Features

    1. 100% cooling redundancy, 24x 3.5" Hot-swap SAS3 Drive Bays
    2. Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud
    3. Dual SAS3 (12Gbps) expander backplane
    4. Mini SAS HD (SFF 8643) connectivity;
    5. Support two 1000W BBP
    6. Support up to 13 FH FL expansion slots
    7. High Availability PS, Storage Capacity, and numerous I/O slots




Product SKUs
CSE-846XE2C-R1K23B
  • SuperChassis 846XE2C-R1K23B

Form Factor
  • 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and and 15.2" x 13.2"

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29" (736 mm)
Gross Weight
  • 75 lbs (34.02 kg)
Packaging (W x H x L)
  • 28" (711 mm) x 18" (457 mm) x 42" (1067 mm)
Available Color
  • Black

Expansion Slots
  • 7 full-height & full-length expansion slot(s)
  • 4 full-height & half-length expansion slot(s)

Drive Bays
  • 24 x 3.5" hot-swap SAS/SATA drive bay with SES3

Backplane
  • 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives
  • Optional 2 x 2.5" hot-swap drive bay
  • Optional 2 x 3.5" internal fixed drive bay
  • Optional 4 x 2.5" internal fixed drive bay

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
  • Power Fail LED
Motherboard (for CSE- 846XE2C-R1K23B)
X9DRX+-F X10DRX


Systems Cooling
Fans
  • 4 x 92x38mm Hot-Swap Cooling Fans
  • 1 x 8cm hot-swap exhaust fan(s) & air shroud

System Monitoring
  • Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 60°C (-40°F - 140°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 83A (100Vac - 127Vac)
  • Max: 100A (200Vac - 240Vac)
  • Max: 100A (200 - 240)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT418-B6824
  • O/P: 12V/256
  • +5V Max: 50
  • +3.3V Max: 30
  • -12V Max: 0.6
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-84602-0N 1 Air shroud for SC846X (Optimized for X9DRX)
HD Backplane BPN-SAS3-846EL2 1 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
Cable(S) CBL-0088L 4 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG
Cable(S) CBL-0174L 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
Cable(S) CBL-0216L 1 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
Cable(S) CBL-0217L 1 CBL,CNTL PANEL CONVERTER,FOR SC826/846,FFC,16PIN,22CM
Fan(s) FAN-0115L4 4 92x92x38 mm, 7.5K RPM, PWM Fan for SC748 rev K
Fan(s) FAN-0125L4 1 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5" HDD cage
Drive Tray(s) MCP-220-00075-0B 24 Black gen 5.5 hot-swap 3.5"; HDD tray
Power Distributor PDB-PT418-B6824 1 Power Distributor Board for SC418 to support Battery and GPU option
Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Power Supply & Accessory CSE-PT0130L 2 SC745 Power Supply Dummy Cover (76mm wide, 700W/800W/900W)
Mounting Rail(s) MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W
Mounting Rail(s) MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
Rear Window MCP-240-84603-0N 1 846X rear window
