AIC SB201-SU - XP1-S201SU01

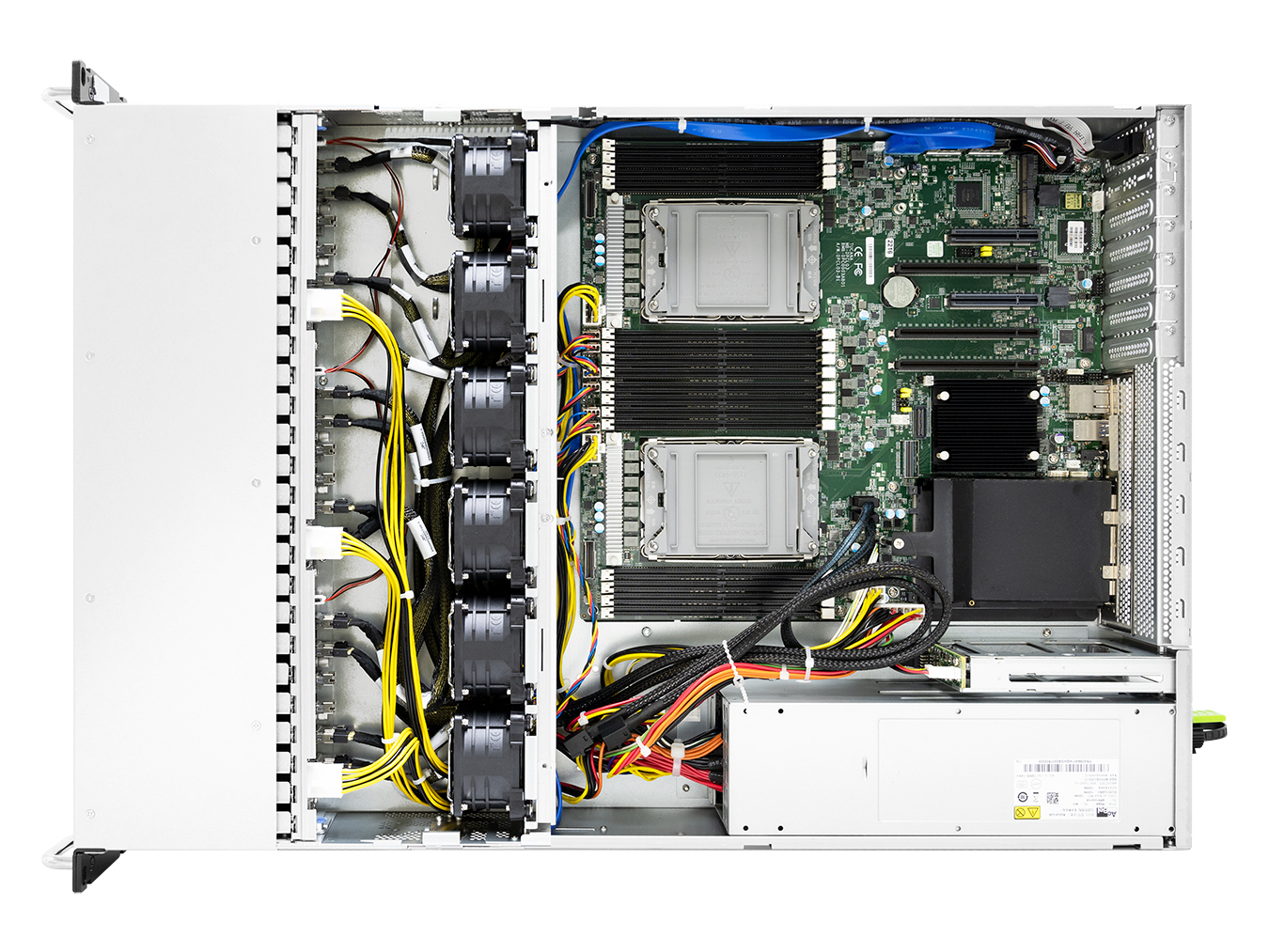

2U 24-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 8-port backplane, 2x 2.5" SATA hot-swap, 6x 6056 FAN, Acbel 2000W redundant power supply Platinum (C14 inlet), Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHHL), 2x OCP 3.0 x16 Gen.5, 2x CPU heatsink, 28" slide rail, Gen-Z to PCe cable (for add-on card support) x2, w/o bezel
We also offer six months of free collocation in our TIER III data center.
| Product code | 202.180085 |
|---|---|
| Part number | XP1-S201SU01 |
| Manufacturer | AIC |
| Availability | Not in stock |
| Warranty | 36 months |
| Weight | 20 kg |
| The price includes all legal fees | |
Detailed information
AIC Servers
AIC's offers heavy-duty EMI-RFI-resistant industrial computer enclosures. Their scalable and cost-effective enclosure solutions encompass server and storage enclosures in a variety of form factors and specifications. AIC enclosures are designed to support the latest technology platforms in the market today, ensuring maximum compatibility with products from other component vendors.
Invest in Certainty
AIC, with over 30 years of experience, offers unmatched flexibility and scalability in the market. Its wide range of products allows maximum customization according to individual customer needs. With the trust the company places in its solutions, it provides extended warranties on its products for 5 years and more. The combination of efficient and modern design positions AIC at the forefront of the market, enabling it to quickly gain recognition in the mainstream.
-
- Dimensions
( W x D x H ) mm : 438 x 820 x 87.5
inches : 17.2 x 32.2 x 3.4- Motherboard
Model AIC Server Board Sirius - Processor
CPU Dual Intel® Xeon® 6 6700E/6500P/6700P series TDP 350W UPI Speeds 24GTs Socket Type Socket E2 (LGA 4710 Socket) - System Memory
Memory Slots DDR5 RDIMM x32 - Front Panel
Utilities Power button
ID button
Reset button
VGA
2 x USB 3.0- LED
LEDs Power
Warning- Drive Bays
2.5" hot swap 24 NVMe
2 SATA- Backplanes
Backplane 3 PCIe Gen.5 NVMe 8-port - Expansion Slots
PCIe 5.0 2x PCIe x16 Gen.5 (FHHL) OCP 2x OCP 3.0 x16 Gen.5 Riser Card (included) 1 x RC-PE2U26-TY
1 x RC-PE2U27-TY- System BIOS
BIOS Type AMI UEFI BIOS BIOS Features ACPI
PXE
WOL
AC loss recovery
IPMI 2.0 KCS mode interface
SRIOV
SMBIOS
TPM
Serial console redirection
PCIe hotplug
-
- On-board Devices
SATA 2 x SATA3 7-pin by ASM1062R (support RAID 0/1)
12 x SATA3 by 3 x Mini-SAS connectors (power by ASM1164)BMC Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
HTML5
RedfishNetwork Controllers Realtek RTL8211FS 1GbE for BMC dedicated management port
2 x Intel® I210 GbE Ethernet ControllerGraphics Integrated VGA support by ASPEED AST2600
Resolution up to 1920x1200 @60Hz 32bpp- Rear I/O
LAN 2 x RJ45 connectors for dual port GbE
1 x RJ45 connector (for BMC management port)USB 2 x USB 3.0 Type-A Video Output 1 x DB-15 VGA connector
1 x Mini display portSerial Port 1 x COM connector (Audio Jack) - Power Supply
Certification Platinum Power 2000W Efficiency 80+ QTY 1+1 redundant - System Cooling
Cooling 6x 6056 FAN - System Management
Management IPMI 2.0
KVM over IP
Media redirection
Temperature, fan, voltage, PSU sensor monitor
System temperature
System ID / System fail indicator
Remote power on/off/reset
SEL message alarm through mail
SNMP support- Environmental Specifications
Storage temperature -10 °C (14°F) ~ 60 °C (140°F) Operating temperature 0 °C (32°F) ~ 35 °C (95°F) Storage operating humidity 5% ~ 95% non-condensing - Gross Weight
( w/ PSU & Rail ) kgs : 25
lbs : 55- Packaging Dimensions
( W x D x H ) mm : 1155 x 615 x 328
inches : 45.5 x 24.2 x 12.9- Mounting
Standard 36" tool-less slide rail
Parameters
| Size in U | 2 |
|---|---|
| Depth (mm) | 646.2 |
| CPU manufacturer | Intel |
| Socket | 4189 |
| HDD disks | 28 |
| 2.5" Drive bays | 26 |
| 3.5" Drive bays | 0 |
| NVMe slots | 24 |
| Total amount of PCIe | 5 |
| OCP/AIOM | 1 |
| Power (W) | 1200 |
| Efficiency certification | Platinum |
