AIC SB201-HK - XP1-S201HK04
2U 24-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 8-port backplane, 2x 2.5" SATA hot-swap, 6x 6056 FAN, Acbel 2000W redundant power supply Titanium (C14 inlet), Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHFL) for double slot GPU with GPU card retainer, 2x OCP 3.0 x16 Gen.5, 2x 1U CPU heatsink, 28 slide rail, Gen-Z to PCe cable (for add-on card support) x2, w/o bezel
We also offer six months of free collocation in our TIER III data center.
| Product code | 202.180084 |
|---|---|
| Part number | XP1-S201HK04 |
| Manufacturer | AIC |
| Availability | Not in stock |
| Warranty | 36 months |
| Weight | 20 kg |
| The price includes all legal fees | |
Detailed information
AIC Servers
AIC's offers heavy-duty EMI-RFI-resistant industrial computer enclosures. Their scalable and cost-effective enclosure solutions encompass server and storage enclosures in a variety of form factors and specifications. AIC enclosures are designed to support the latest technology platforms in the market today, ensuring maximum compatibility with products from other component vendors.
Invest in Certainty
AIC, with over 30 years of experience, offers unmatched flexibility and scalability in the market. Its wide range of products allows maximum customization according to individual customer needs. With the trust the company places in its solutions, it provides extended warranties on its products for 5 years and more. The combination of efficient and modern design positions AIC at the forefront of the market, enabling it to quickly gain recognition in the mainstream.
-
- Dimensions
( W x D x H ) mm : 438 x 800 x 87.5
inches : 17.2 x 33.5 x 3.5- Motherboard
Model AIC Server Board Horkos - Processor
CPU 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids)
4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids)TDP 350W Socket Type Socket E (LGA 4677) Chipset Support Intel® Emmitsburg PCH (C741 Chipset) - System Memory
Memory Channels 16 slots per CPU (2DPC)
DDR5 5600MHz (1DPC) 4400MTS (2DPC)
DDR5 4800MHz (1DPC)Memory Slots 32 DDR5 RDIMM - Front Panel
Utilities 1 x System power on/off button
1 x System reset button
1 x System ID button
1 x System alert (BMC)
2 x USB 3.0- LED
LEDs System power on/off
System ID- Drive Bays
2.5" hot swap 24 x PCIe Gen5 NVMe
2 x SATA (15mm, rear)M.2 2 x M.2/M-Key/22110/228 (PCIe Gen4) - Backplanes
Backplane 3 x 8-bay NVMe PCIe Gen 5 - Expansion Slots
PCIe 5.0 2 x PCIe X16 slots (FHHL) (Reserve GPU card support retention mechanical bracket) OCP 2 x OCP 3.0 bays (PCIe X16 width) Riser Card G3-A00001149: 2 x PCIe 5.0 x16 cable CEM - System BIOS
BIOS Type AMI UEFI BIOS BIOS Features ACPI
PXE
WOL
AC loss recovery
BIOS recovery
IPMI 2.0 KCS mode interface
SRIOV
SMBIOS
TPM
Serial console redirection
PCIe hotplug
-
- On-board Devices
SATA/NVMe Intel® Emmitsburg PCH on-chip solution
2 x SATA 6.0 Gb/s by slimline x8
M.2: 2 x M.2/M-Key/22110/2280 (PCIe Gen4)BMC Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
HTML5
Redfish
SMASH SupporNetwork Controllers Realtek RTL8211E for BMC dedicated management port Graphics Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
PCIe Graphic/2D Controller

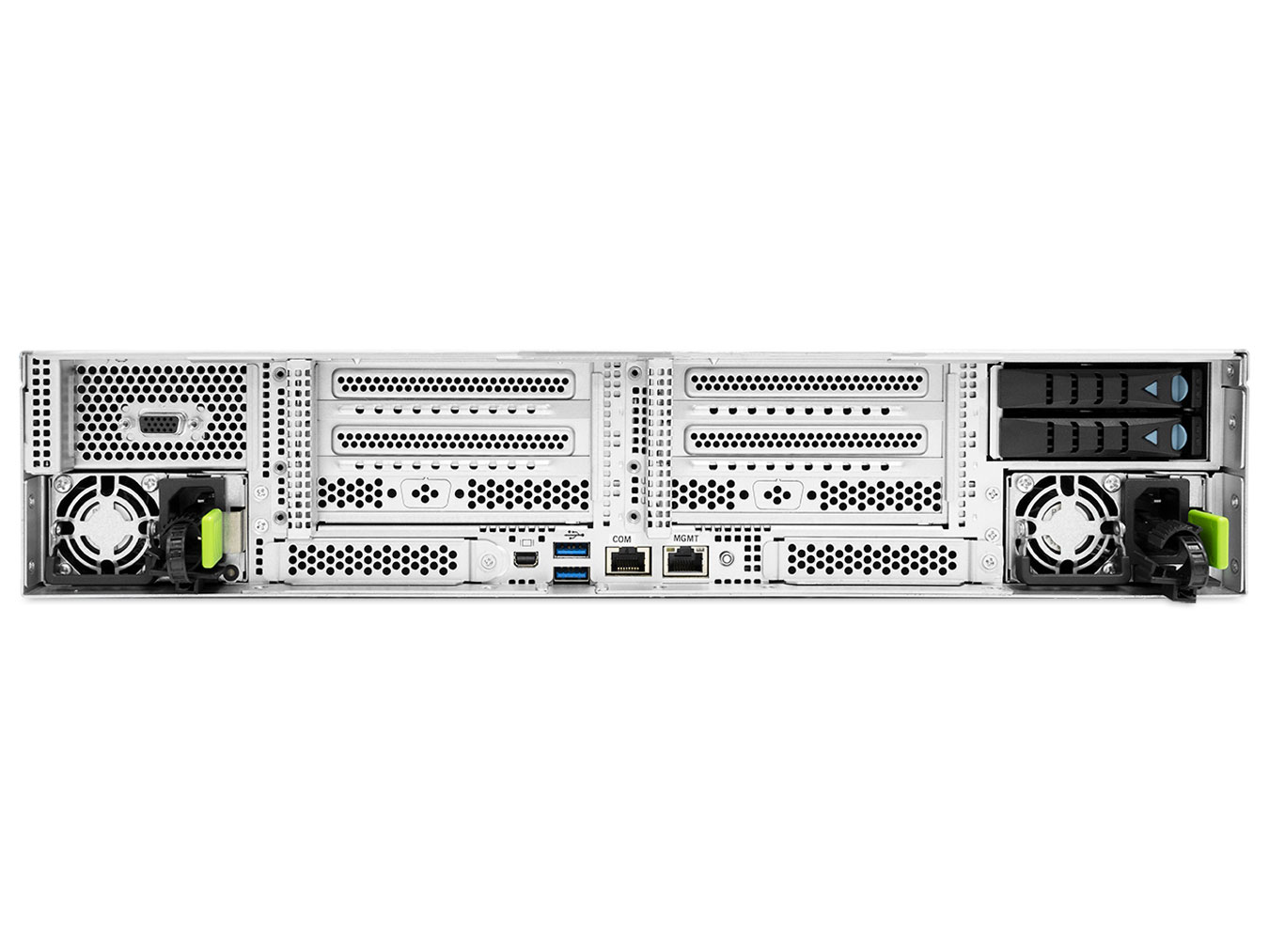

1920x1200@60Hz 32bpp- Rear I/O
LAN 1 x GbE RJ45 dedicated BMC management USB 2 x USB 3.2 Gen1 Type A Video Output 1 x Mini DisplayPort
1 x external VGA portSerial Port 1 x RJ45 (COM) - Power Supply
Certification Titanium Power 2000W Efficiency 80+ QTY 1+1 redundant - System Cooling
Cooling 6 x 60x56mm easy swap fans
ABS material plastic air-duct (clear)- Environmental Specifications
Storage temperature -10 °C (14°F) ~ 60 °C (140°F) Operating temperature 0 °C (32°F) ~ 35 °C (95°F) Storage operating humidity 5% ~ 95% non-condensing - Gross Weight
( w/ PSU & Rail ) kgs : 29
lbs : 63.9- Packaging Dimensions
( W x D x H ) mm : 605 x 1210 x 320
inches : 23.6 x 47.6 x 12.5- Mounting
Standard 28" tool-less slide rail
Parameters
| Size in U | 2 |
|---|---|
| Depth (mm) | 800 |
| CPU manufacturer | Intel |
| Socket | 4677 |
| HDD disks | 28 |
| 2.5" Drive bays | 26 |
| 3.5" Drive bays | 0 |
| NVMe slots | 24 |
| Total amount of PCIe | 4 |
| OCP/AIOM | 1 |
| Power (W) | 2000 |
| Efficiency certification | Titanium |
